Electrostatic Air Filters
Serenity Cleaning Solutions is proud to offer these electrostatic air filters along with the Kool-Wrap covering, both of which are available through our distributor, Air-Care. The Kool-Wrap is particularly helpful as it protects the air filters’ coils from dirt, dust, and contaminants.
Speaking of air filters, “arrestance” is fancy word, which gets tossed around a lot at Serenity Cleaning Solutions. It really just means filtering capacity.
All Air-Care filters come in one of two types of arrestance—either 94% or 82%. The 94% arrestance filter provides higher filtering capacity by trapping up to 94% of particles in the air. We also offer filters with an 82% arrestance. This provides slightly less filtering capacity, but is less restrictive, allowing greater airflow through the filter.
An 82% arrestance filter would be appropriate using the following formula. If the filter square footage is less than the tonnage of the unit, we recommend an 82% arrestance filter.
How To Determine If You Need an 82% or 94% Arrestance Filter
Here's an example: If you have a 16 x 25 filter and a 2.5 ton unit, the square footage of the filter is 2.8 square feet (16 x 25 / 144 = 2.8). Since 2.8 is greater than 2.5, you are fine with using a 94% arrestance filter in this system. If the filter size is 12 x 18, the square footage of this filter is 1.5 (12 x 18 / 144 = 1.5). Since 1.5 is less than 2.5, we would recommend an 82% arrestance filter in this case.

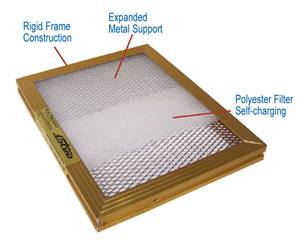

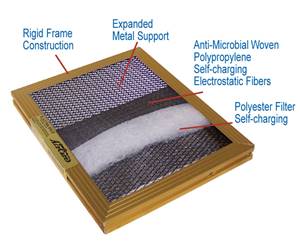

Our Gold Frame filters are made with a premium quality extruded aluminum, gold anodized frame with a durable and attractive finish. The frame is 4 separate pieces with a single screw fastening each corner together. The frame is strong and sturdy. Gold Frame filters come only in the standard 1" depth.
Gold Frame 82% Arrestance |
Gold Frame 94% Arrestance |
|
|

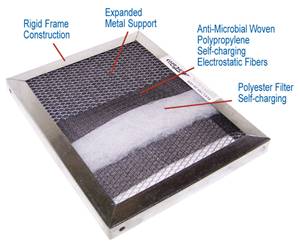

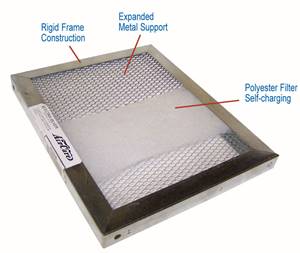

Our Silver Frame filters are made from a single piece of roll-formed galvanized steel fastened together at one corner with a single rivet. This frame type is more cost-effective than the gold frame, but is not quite as strong and sturdy. Silver Frame filters are available in either 1/2", 1" or 2" depths. The 1/2" (7/16" Actual) silver rigid framed filters have 2 layers of polypropylene between 2 layers of expanded steel for improved air flow and rigidity. Our 2" rigid framed filters are configured with the same construction as the 1" Electra silver, but with a 1.5" white polyester ultra high loft impingement filtering center layer.
Silver Frame 82% Arrestance |
Silver Frame 94% Arrestance |
|
|

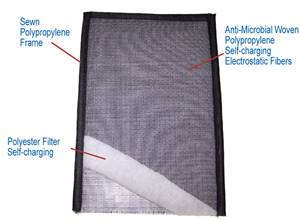

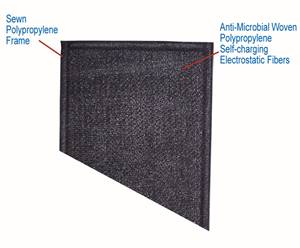

Flexible frames are available for applications where a rigid frame cannot be used because the filter must be bent in order to install. Flexible frame filters have a 3/8" polyester layer and an expanded metal stiffener applied between 2 layers of polypropylene and a polypropylene webbing frame which is sewn around the edge. These 3/8" thick filters fit most 1" applications.
Flexible Frame 82% Arrestance |
Flexible Frame 94% Arrestance |
|
|
- All custom size filters are sized as ordered and non-returnable.
- All standard size filters are undercut by 3/8" for both length and width.
- Flex filters are 1/4" thick.
- All filters have a 1/8" tolerance.
|
||||||
8 X 24 X 1 |
12 X 20 X 1 |
14 X 20 X 1 |
16 X 16 X 1 |
16 X 36 X 1 |
18 X 36 X 1 |
20 X 32 X 1 |
10 X 10 X 1 |
12 X 24 X 1 |
14 X 24 X 1 |
16 X 20 X 1 |
18 X 18 X 1 |
19 X 27 X 1 |
21 X 21 X 1 |
10 X 20 X 1 |
12 X 25 X 1 |
14 X 25 X 1 |
16 X 24 X 1 |
18 X 20 X 1 |
20 X 20 X 1 |
24 X 24 X 1 |
10 X 24 X 1 |
12 X 30 X 1 |
14 X 30 X 1 |
16 X 25 X 1 |
18 X 24 X 1 |
20 X 24 X 1 |
24 X 30 X 1 |
10 X 30 X 1 |
12 X 36 X 1 |
15 X 20 X 1 |
16 X 30 X 1 |
18 X 25 X 1 |
20 X 25 X 1 |
25 X 25 X 1 |
12 X 12 X 1 |
14 X 14 X 1 |
15 X 25 X 1 |
16 X 32 X 1 |
18 X 30 X 1 |
20 X 30 X 1 |
20 X 40 X 1 |
|
Gold 94 |
Gold 82 |
Silver 94 |
Silver 82 |
Flex 94 |
Flex 82 |
Filtration Efficiency |
94% |
82% |
94% |
82% |
94% |
82% |
Dust Holding Capacity |
165 grams |
119 grams |
165 grams |
119 grams |
165 grams |
119 grams |
Air Flow Resistance |
0.12 |
0.08 |
0.12 |
0.08 |
0.12 |
0.08 |
Frame Quality |
Excellent |
Excellent |
Good |
Good |
Flexible |
Flexible |
UV Resistant |
Yes |
No |
Yes |
No |
Yes |
Yes |
MERV Rating |
8 |
6 |
8 |
6 |
8 |
6 |
